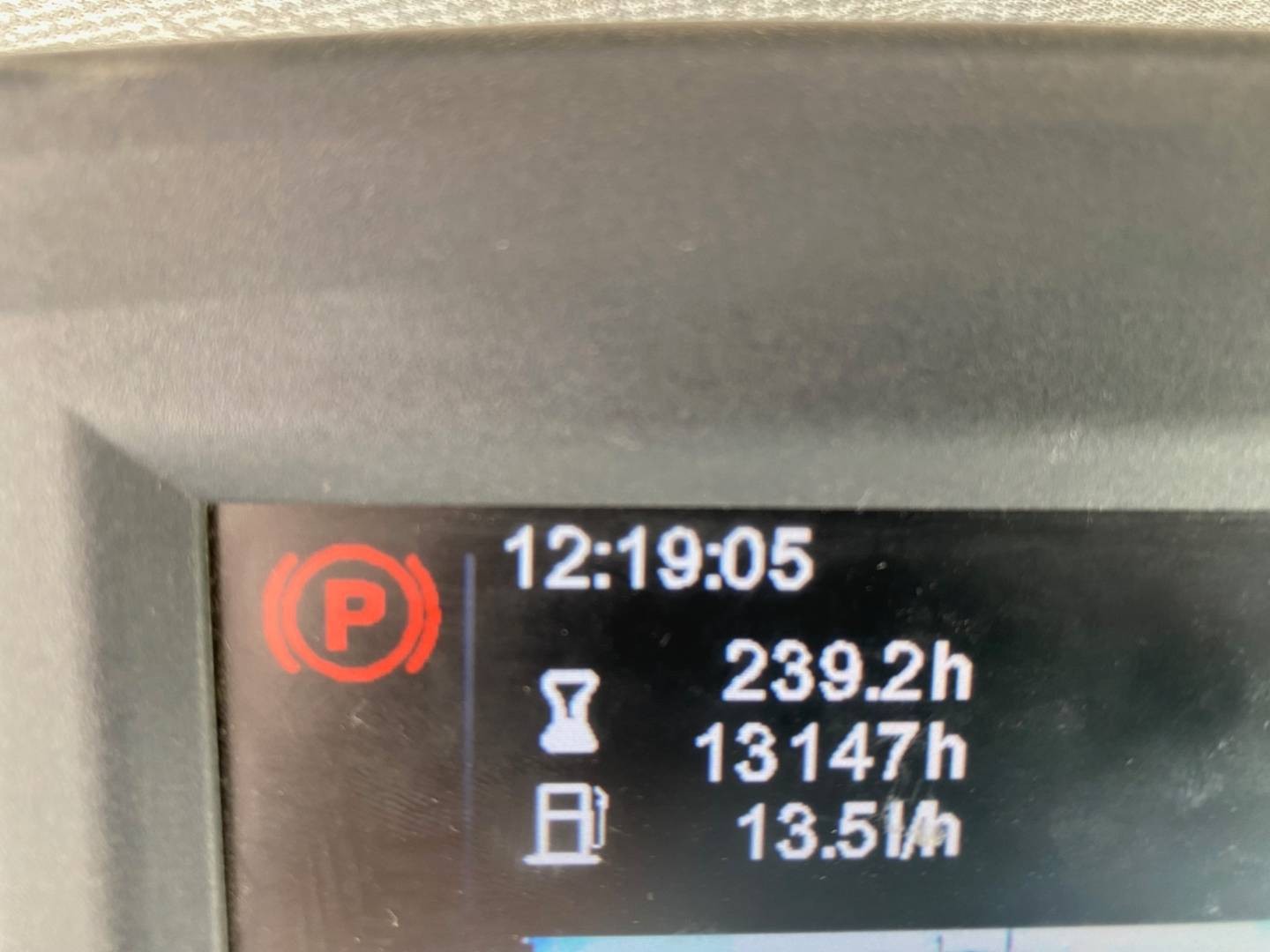

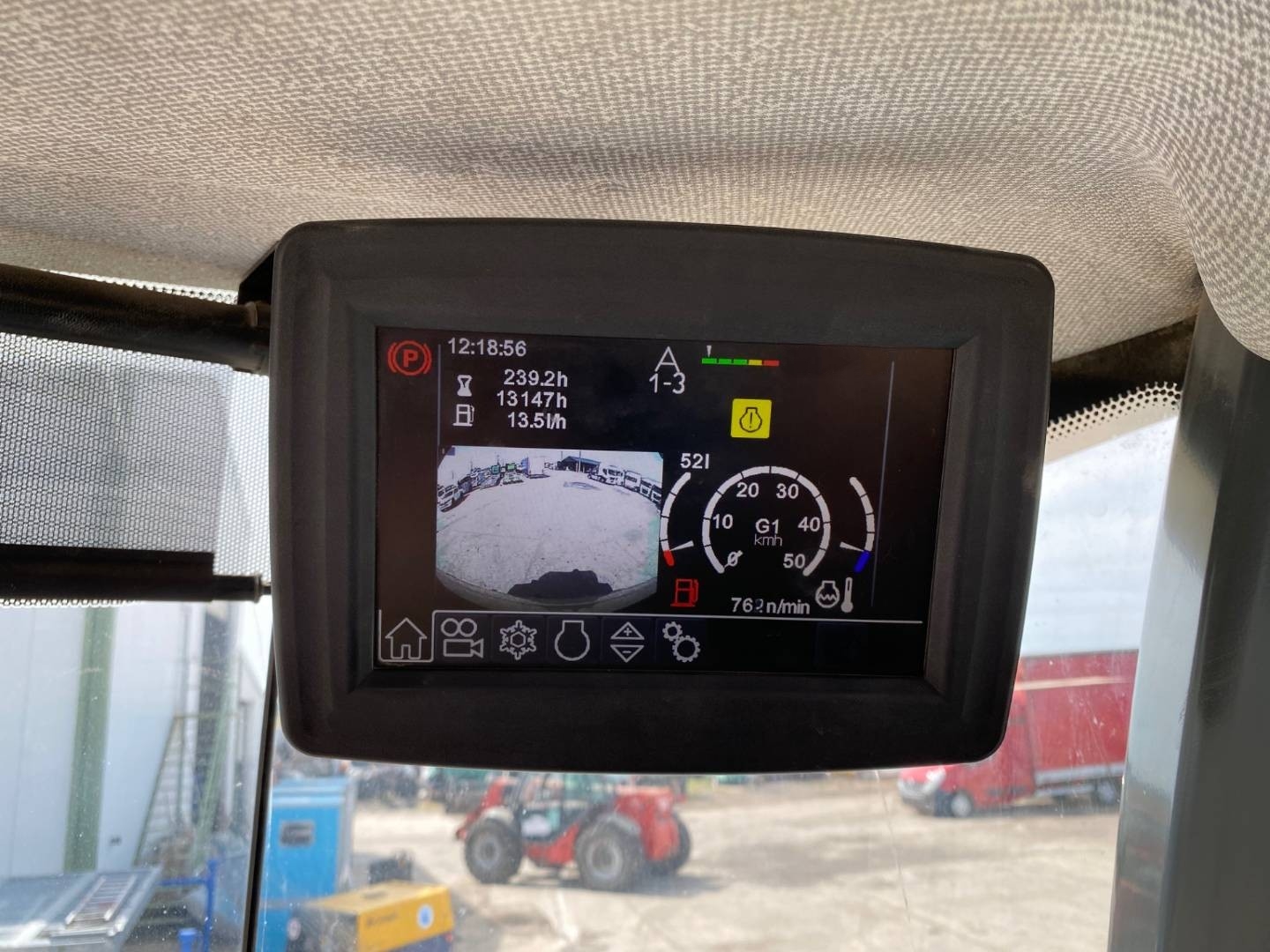

The machine is from 2015 and comes with 13.147 working hours.
CE certified
Travel Speed: 40 km/h
Emission Standard:
Typically equipped with a Stage IV / Tier 4 Final compliant engine
Machine is serviced March 2025
Work Description:
Dismantling and Cleaning:
– Removed engine covers and accessories.
– Disassembled particle filter and catalytic converter.
– Cleaned both components multiple times due to heavy saturation (Level 5 contamination). – Internal engine cleaning: EGR system, cylinder head, pistons, intake, turbo, injector tips, and all relevant sensors (NOx, turbo pressure, intake sensors).
Filter and Catalytic Converter Maintenance:
– Filters were cleaned on the bench twice using a machine due to severe dirt buildup.
Sensor and Electrical Repairs:
– Replaced and calibrated diesel filter decanter sensor.
– Repaired and reconnected loose rear left headlights and associated wiring.
Oil Change:
– Replaced engine oil (40 liters) and both oil filters.
Calibration and Diagnostics:
– Calibrated the system and cleared engine fault codes using Coteyma diagnostic tool.
air conditioning

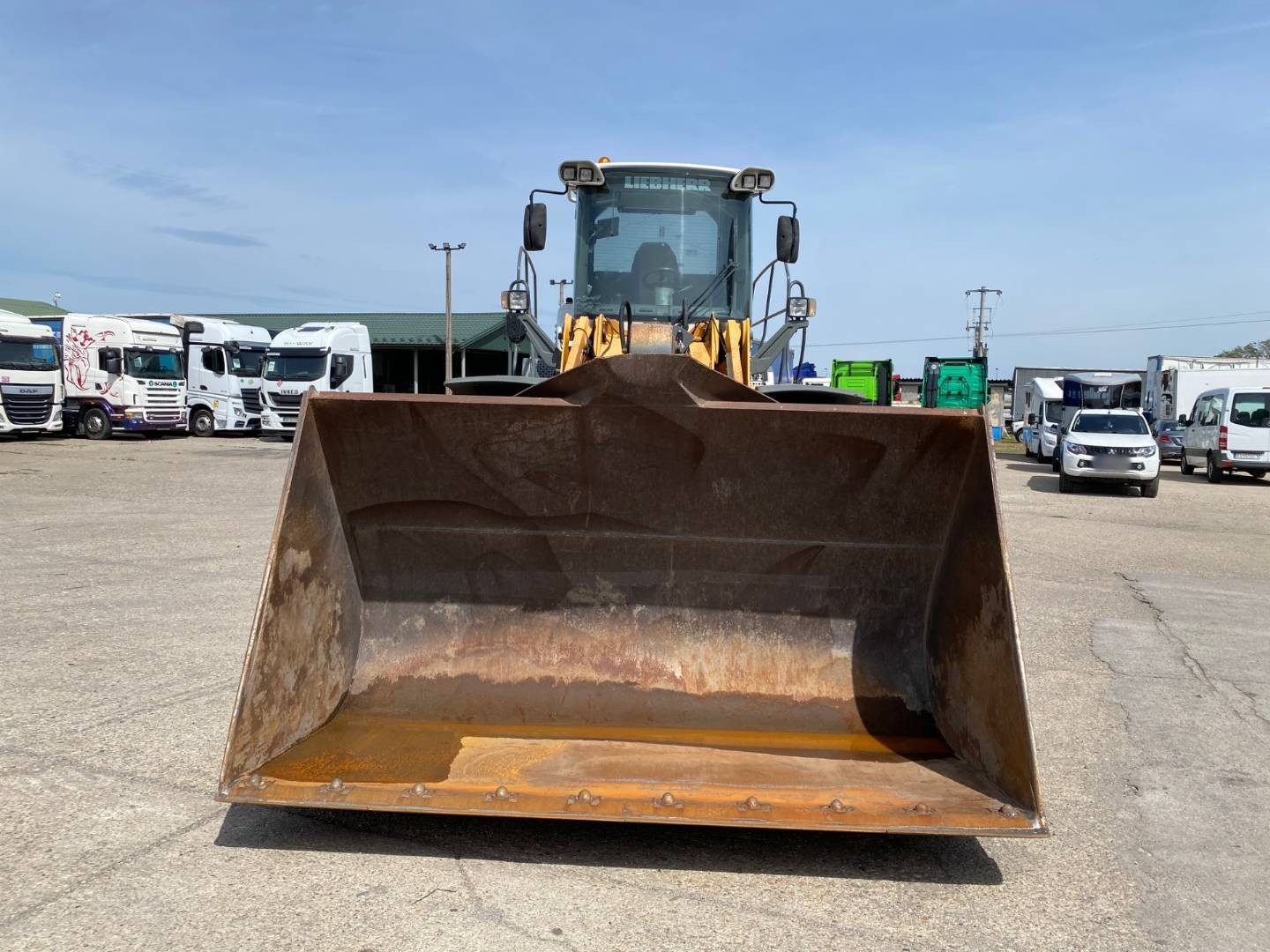

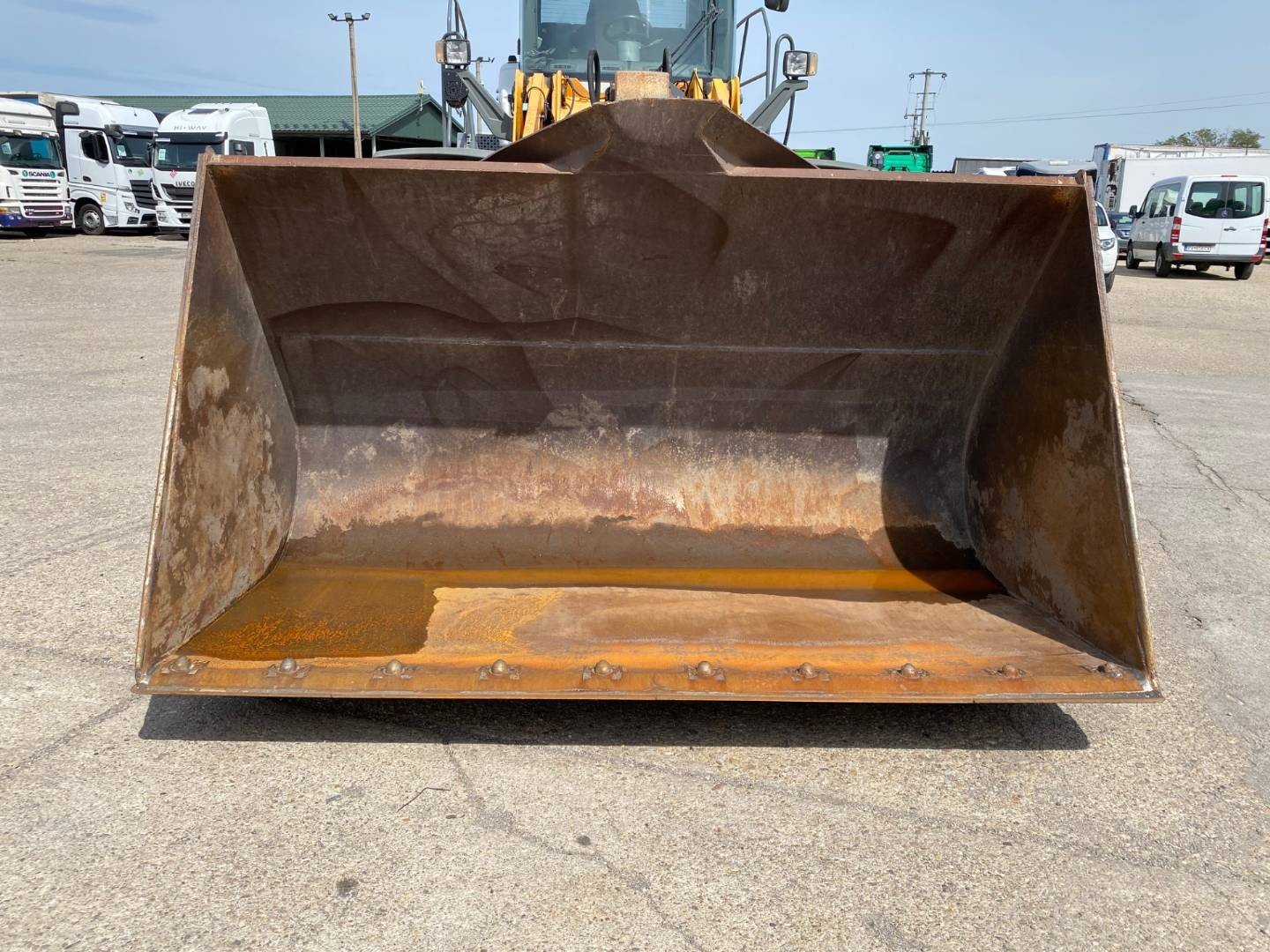

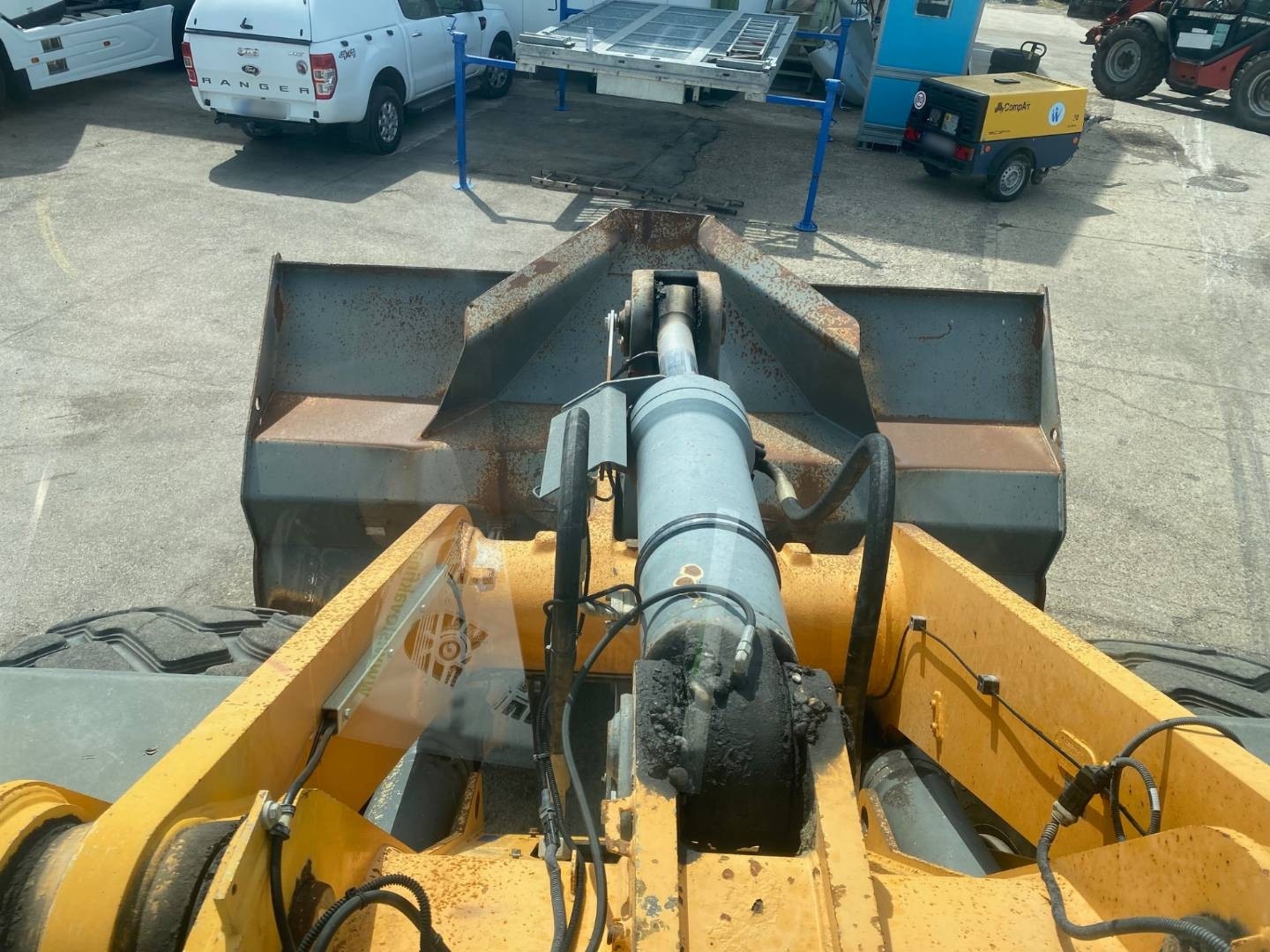

5m3 bucket
Engine & Drive
Engine model: D936 A7 (6-cylinder inline Diesel with charge-air cooling)
Gross power: ~ 288 hp (≈ 215 kW)
Displacement: ~ 642 cu in (≈ 10.6 L)
Max torque: ~ 1,033 lb-ft (~1,401 Nm) at ~1,100 rpm
Drive: Full 4×4 (all-wheel drive) hydrostatic/planetary travel drive
Operating Weight & Capacities
Operating/working weight: ~ 25,179 kg (≈ 55,510 lb)
Fuel tank capacity: ~ 401 L (≈ 106 gal)
Hydraulic system fluid capacity: ~ 265 L (≈ 70 gal)
Engine oil capacity: ~ 44 L (≈ 11.6 gal)
Bucket & Linkage / Performance
Bucket capacity, heaped: ~ 5.0 m³ (≈ 6.5 yd³)
Breakout force: ~ 19,375 kg (≈ 42,715 lb)
Dump clearance at max raise: ~ 3.08 m (≈ 10.11 ft)
Hinge pin max height: ~ 4.57 m (≈ 15.0 ft)
Reach at max lift and dump: ~ 1.19 m (≈ 3.9 ft)
Dimensions
Length (with bucket on ground): ~ 9.7 m (≈ 31.8 ft)
Height to top of cab: ~ 3.63 m (≈ 11.9 ft)
Ground clearance: ~ 0.58 m (≈ 1.9 ft)
Wheelbase: ~ 3.69 m (≈ 12.1 ft)

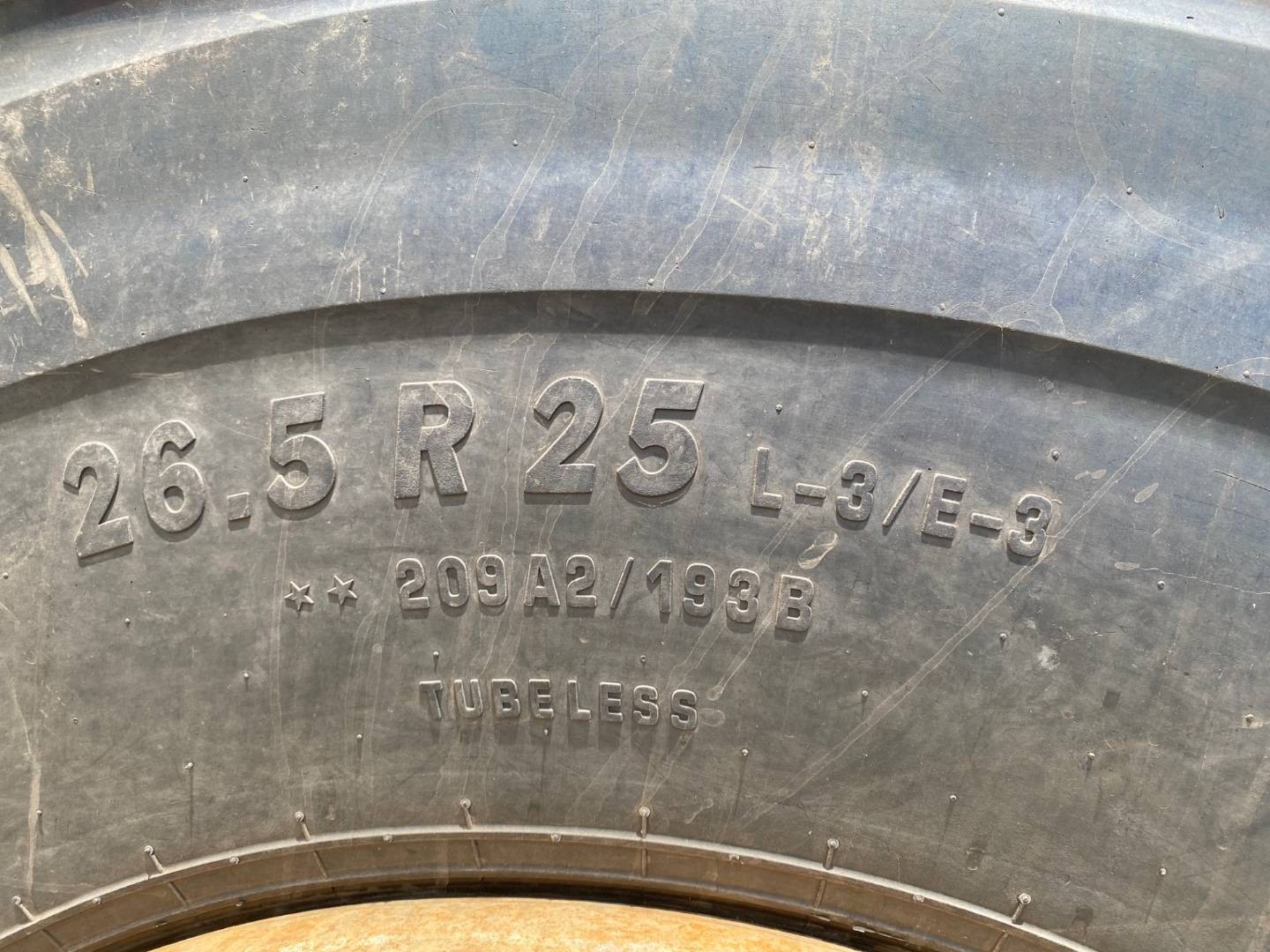

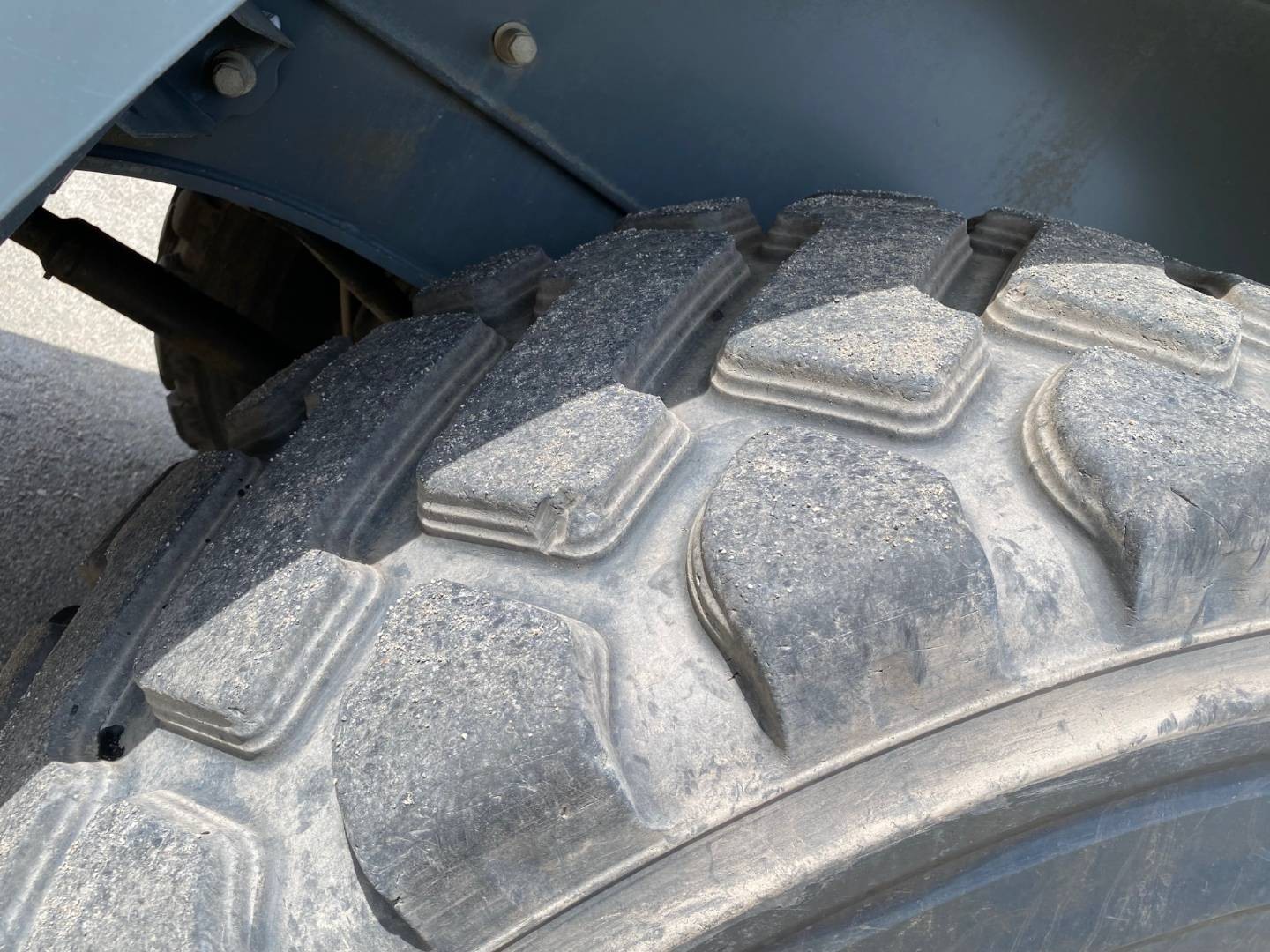

Tyre size: 26.5 R 25 (typical)
Transmission / Speed
Max forward speed: ~ 40 km/h (≈ 24.9 mph)
Forward gears: 3 forward / 3 reverse
