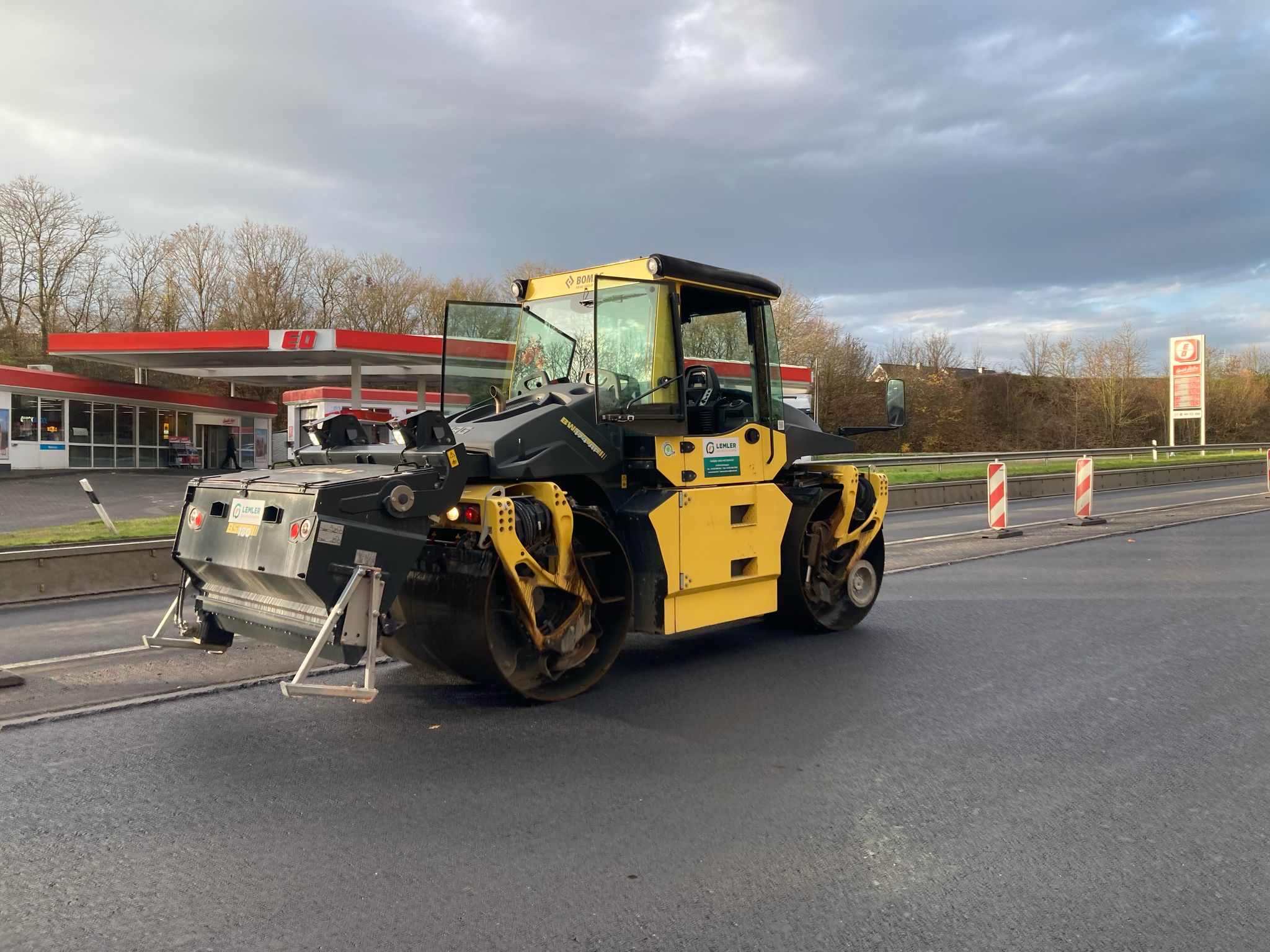

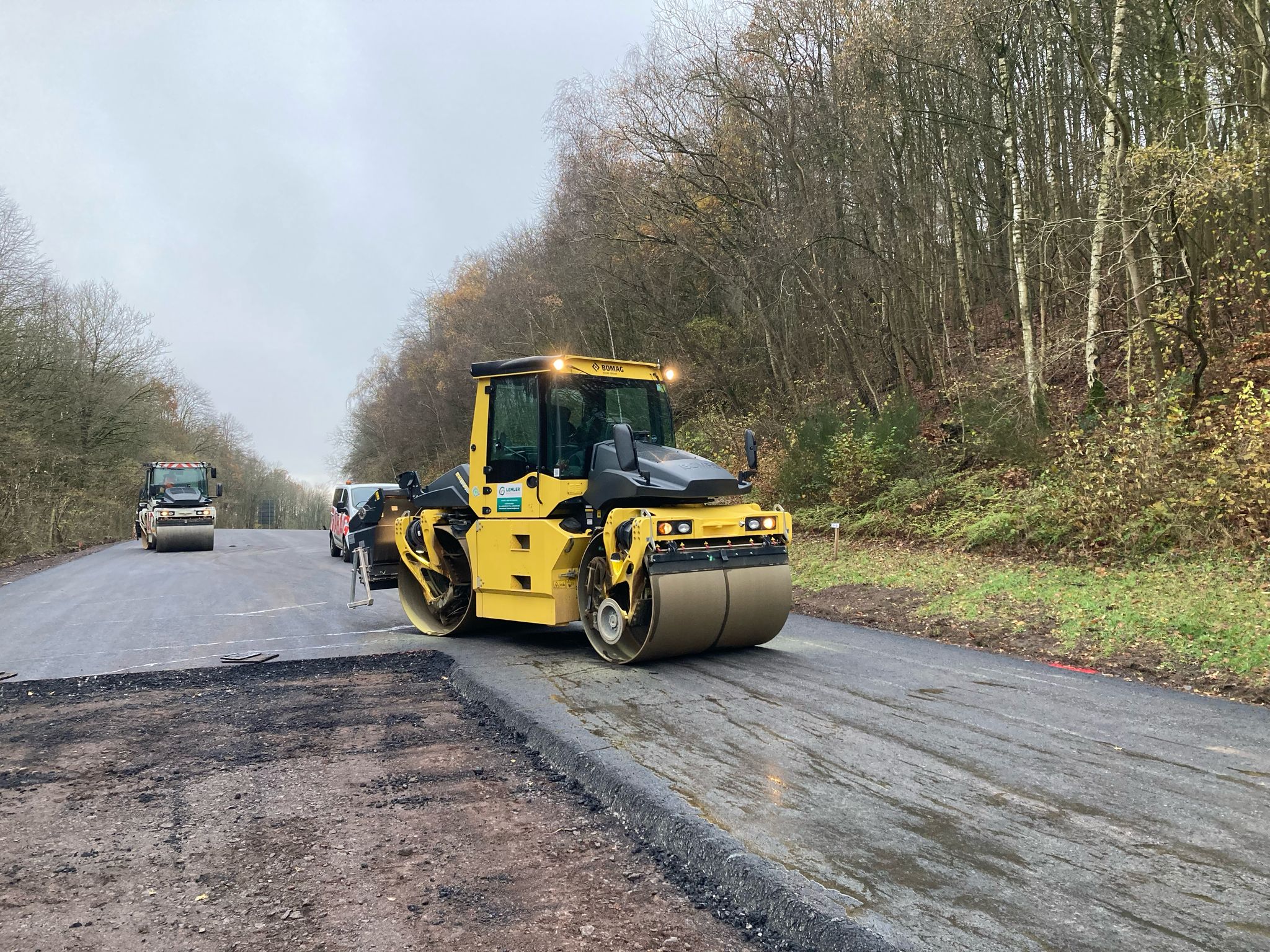

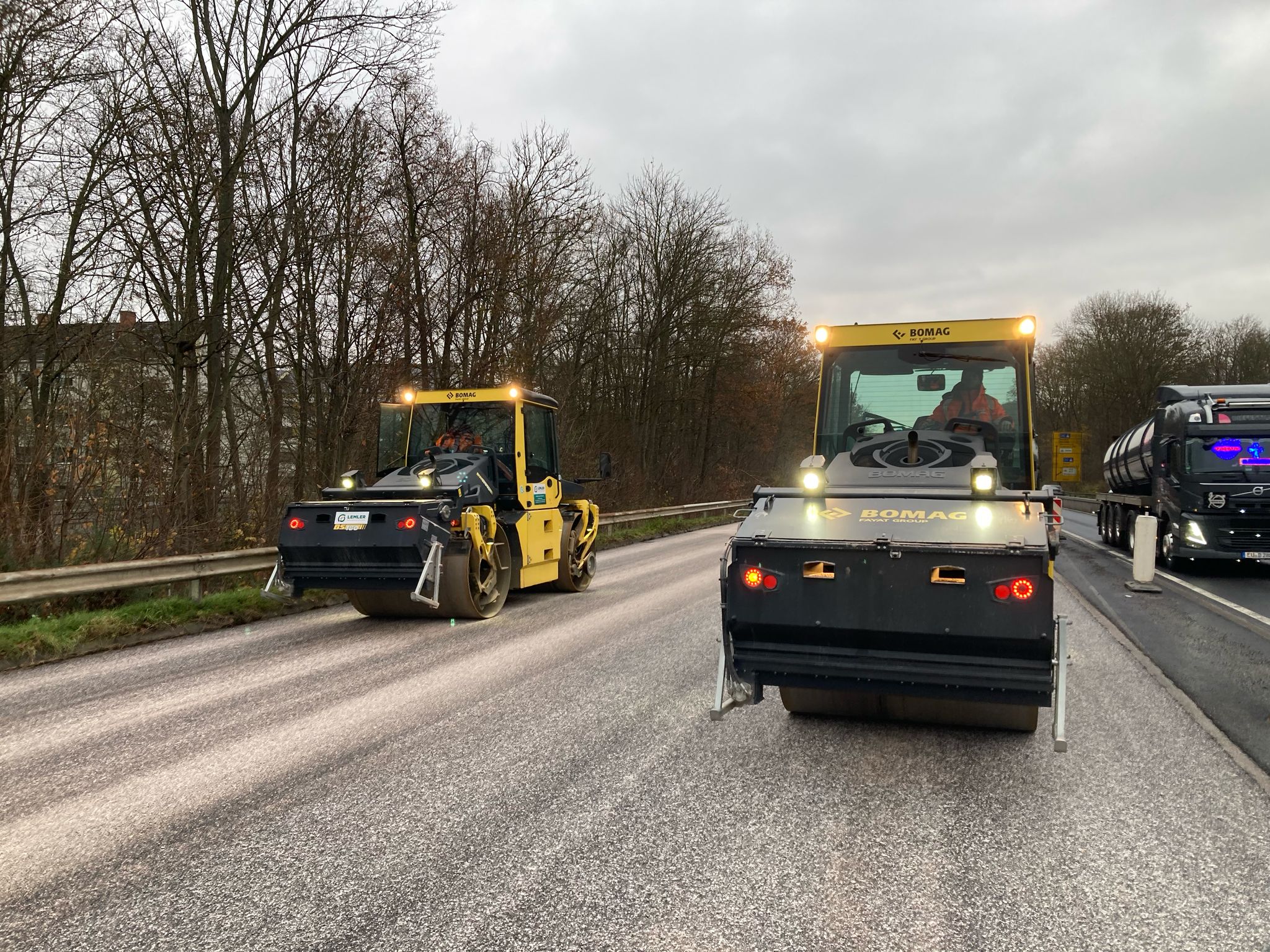

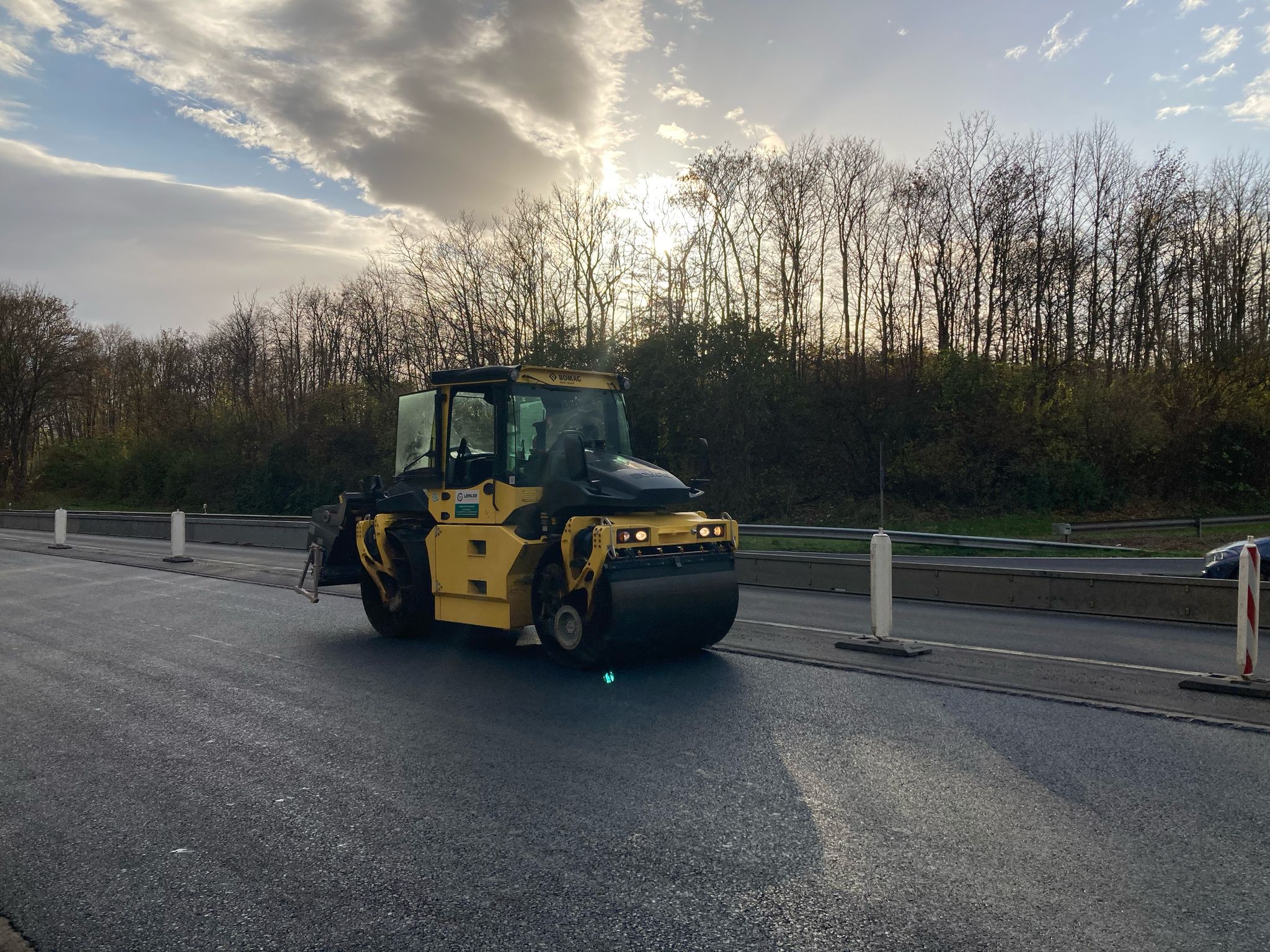

2021 BOMAG BW 174 AP-4v
The 2021 BOMAG BW 174 AP-4v is a tandem roller with a weight of approximately 9.5 to 9.92 tons, a drum width of 1.68 m, and a Deutz engine producing 74 kW. Key features include a split-drum front and rear, two vibration frequencies, and an articulated steering system. It meets Stage V / Tier 4f emission standards and includes equipment like a compaction meter, temperature measurement, and sometimes a grit spreader option.
All the prices include VAT.
All our offered products come with 12 month warranty.
For quotes about delivery costs please use the contact form.
Key specifications
Weight: 9.92 metric tons (t)
Engine: Deutz TCD 3.6 L4
Engine Power: 74 kW
Engine Emission Standard: Stage V / Tier 4f
Drum Width: 1.68 m (1,680 mm)
Vibration: Divided drum with 2 frequencies
Steering: Articulated steering system
Additional features
Compaction meter
Temperature meter
Air conditioning

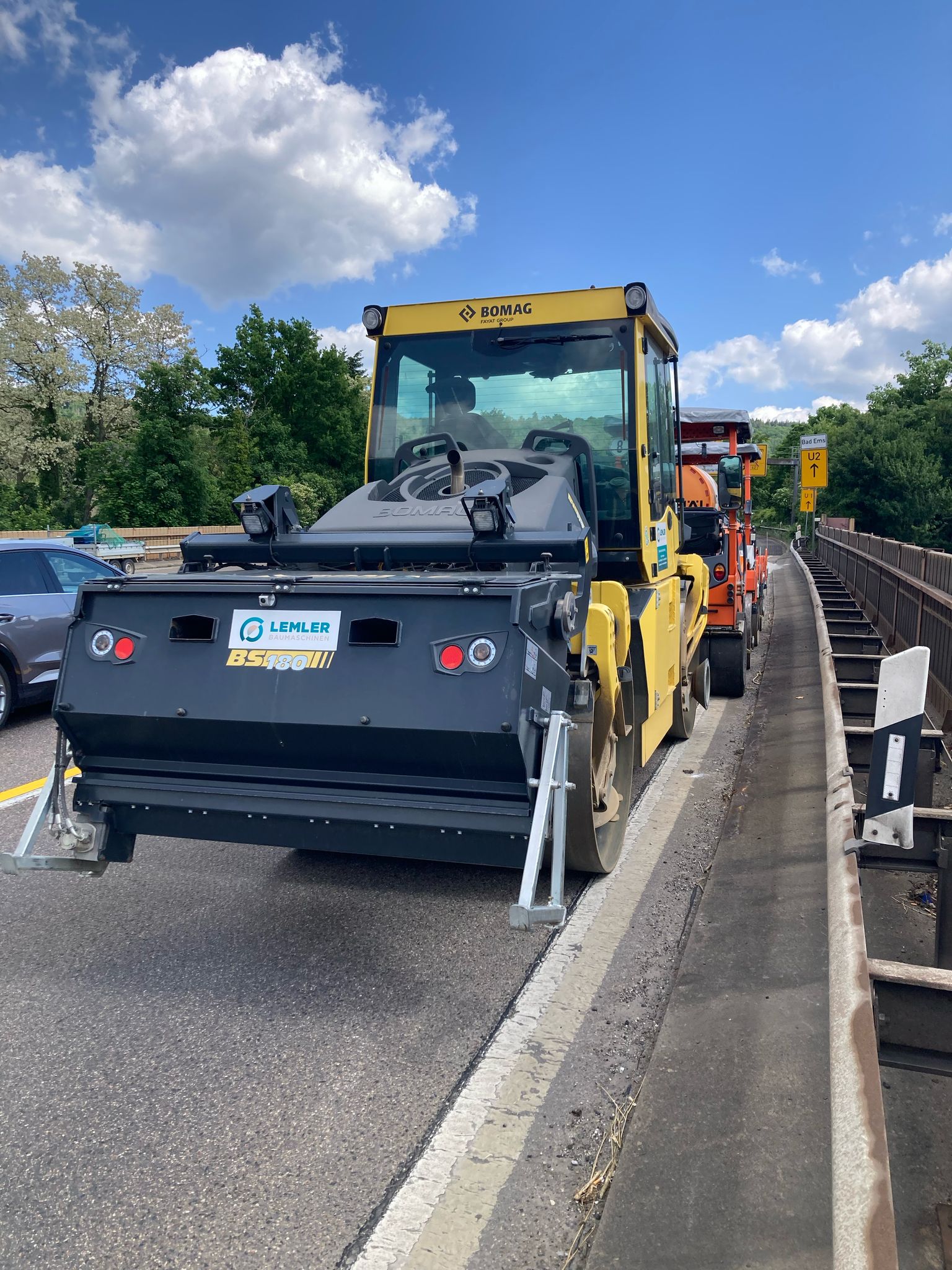

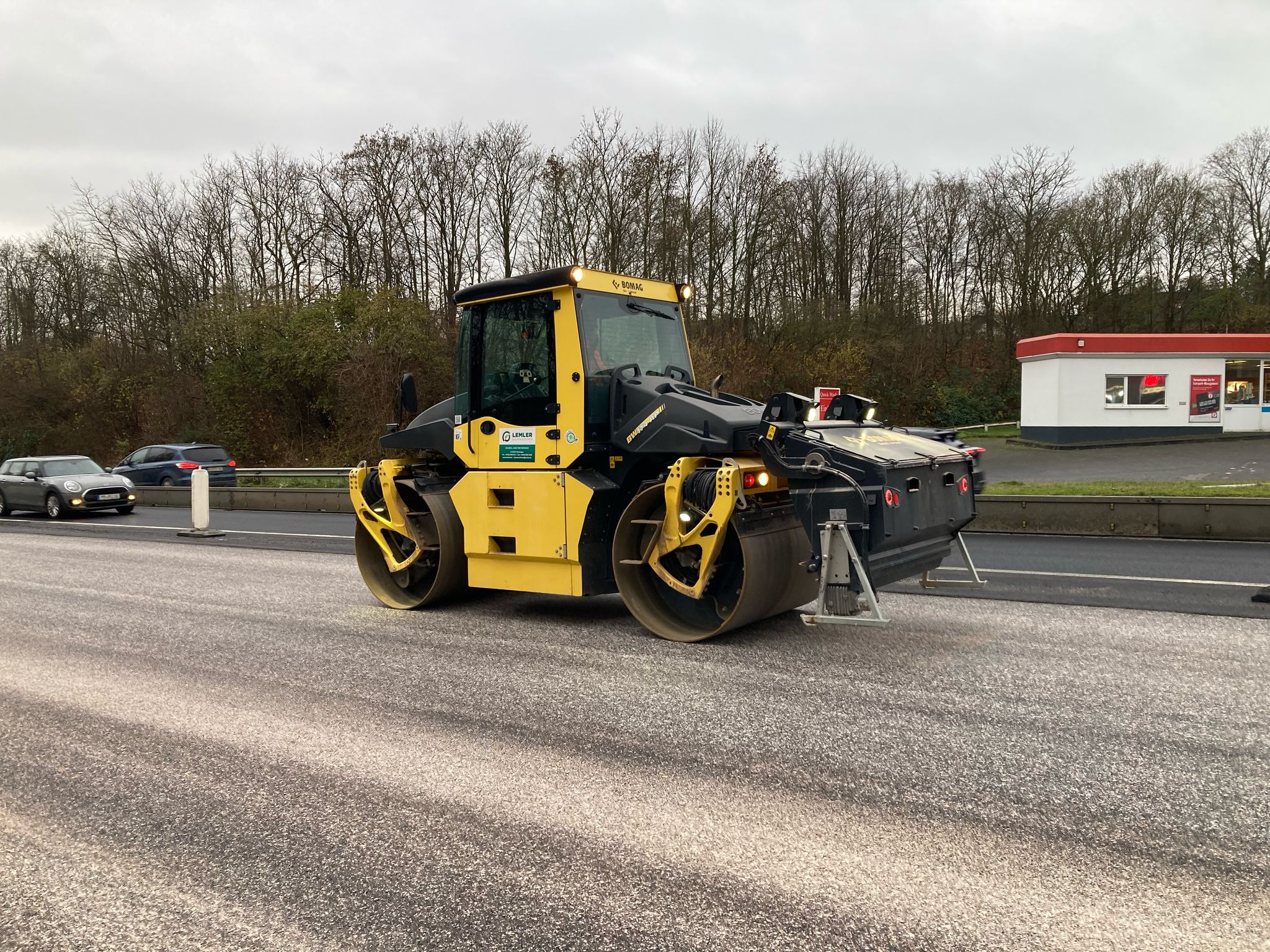

Grit spreader option (often an add-on)
Multiple frequencies
Full drum drive
Transport dimensions (approximate):
Length: 4.42 m
Width: 1.826 m
Height: 3 m
